EPE Foam NetPipeRod Extruder

It can produce all kinds of foam net ,foam pipe,foam stick,foam sheet and so on by changing the mould.

Our company specializes in epe foam net machine,our machines enjoy a high reputation at domestic and abroad because of excellent quality and reasonable price.

1.It can produce different kinds of  fruit net ,the output is about 800,000-1,200,000 pcs per day.

2.It also can produce all kinds of foam sticks,foam pipe,foam sheet and so on by changing the mould.

3.The machine is of high output,high quality and high efficiency. We also can design as required.

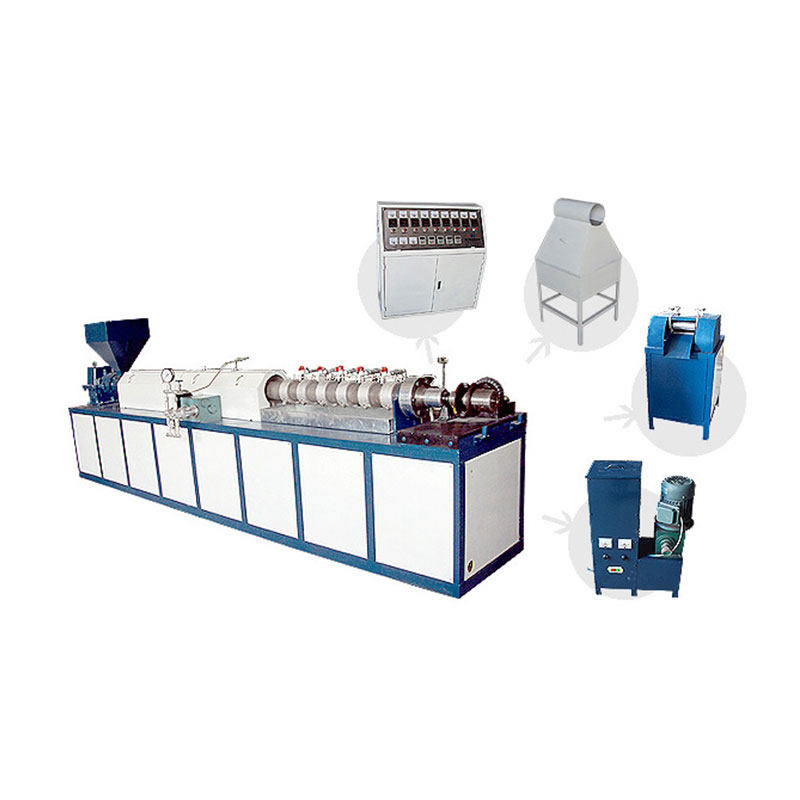

Component

A. Feeding Hopper: It is used to take the material enter into the extruder

B. Motor and Reducer: It is used to heat and rotate the extruder.

C. Mold: By changing different mold, you can get different products such as fruit net with different size.

D. Cutter: By adjusting the speed of cutter, you can adjust the length of each products.

E. Temperature Cabinet: All heating zone temperature will be showed on the screen so that you can adjust the appropriate temperature to get good quality products as your client’s requirement.

F. Butane Gas Pump. The raw material is LDPE Granules. After heating and it need to be foamed by butane gas. So we need butane gas pump to inject butane after heating the material to be liquid.

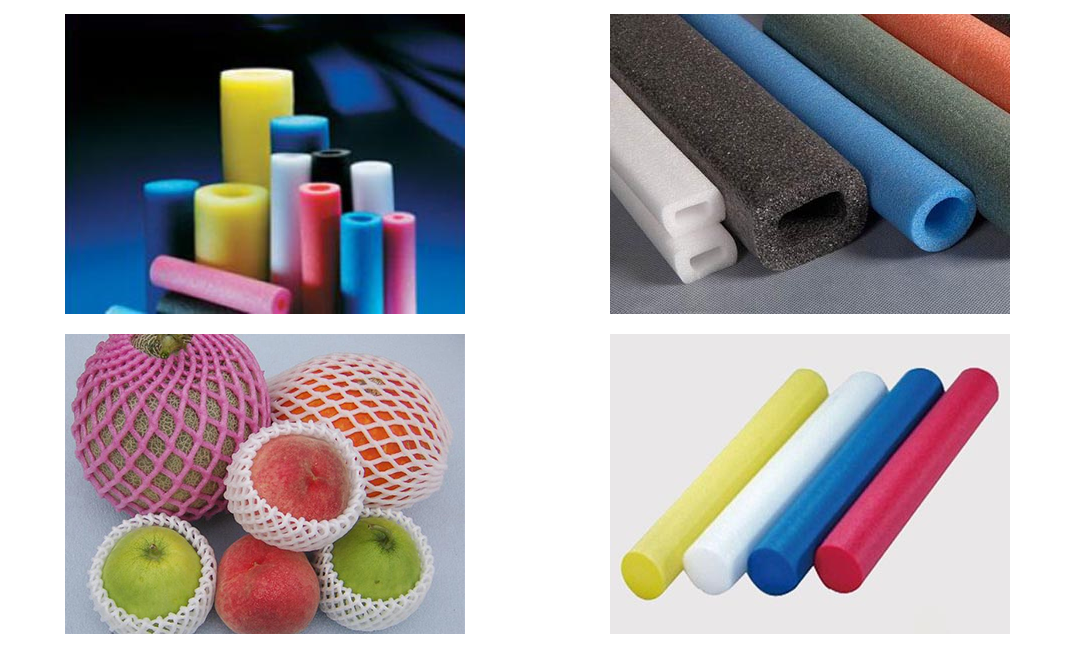

Products

Fruit net: Some small net is for small fruit such as the plum and big net is for big products such as the water melon. Each net also can be set different threads. All these can be produced by changing different mold.

Vegetables Net: In the supermarket we can see many products are packed by net. It is used for transportation and also can let the vegetables not be damaged and influence the buyer need.

EPE Foam Rod: It is for the sofa or other different building products.

The curtain wall foam rod is filled between the two panels of the curtain wall, which can prevent rainwater from leaking in and save sealant.

The curtain wall is the outer wall of the building. It is not load-bearing and hangs up like a curtain, so it is also called "curtain wall". It is a light-weight wall with decorative effect commonly used in modern large and high-rise buildings. A building envelope or decorative structure that is composed of a panel and a supporting structure system that can have a certain displacement ability relative to the main structure or has a certain deformation ability itself, and does not assume the role of the main structure.

The curtain wall is the use of various strong, light and beautiful building materials to replace the traditional masonry or window wall combination of exterior wall construction methods. It is surrounded by the periphery of the main structure to make the entire building beautiful, and use a functional and safe exterior. Wall construction method. In short, it is to put the building in a beautiful coat. The scope of the curtain wall mainly includes the outer wall of the building, the daylighting roof (cover) and the awning.

It is filled between the two panels of the curtain wall. When filled in, sealant is applied on the outside to prevent rainwater from leaking in. Of course, the most important thing is to save too much money for sealant.

EPE Foam Pipe

Light capacity, high strength, heat insulation, sound insulation, cold resistance, corrosion resistance, no water absorption.

Techanical Data

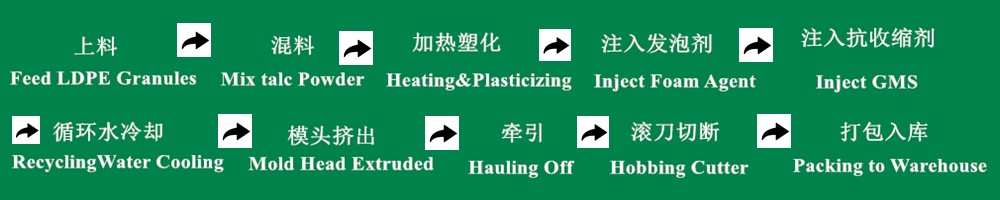

Working Flow

Product Details Pictur
